INDRAMAT MKD090B-035-KG1-KN
Category: Motors-AC Servo

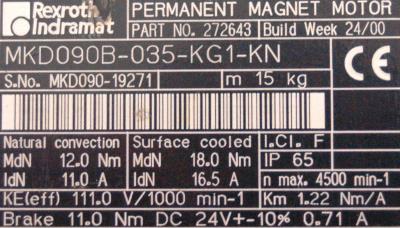

Product Images
| Description | MKD090B-035-KG1-KN is a Motors-AC Servo produced by INDRAMAT | |
| Product Group | MKD series AC Servo motor | |
| Motor Frame Size | Flange size-140mm; Centering diameter-110mm | |
| Motor Frame Length | size 025-0.9Nm; size 041-2.7Nm; size 071-8.0Nm; size 090-12.0Nm; size 112-28.0Nm | |
| Winding Code | 035 | |
| Motor feedback | Resolver feedback with integrated multiturn absolute encoder | |
| Driven shaft | Plain shaft with sealing ring | |
| Holding brake | with brake 24 VDC | |
| Output direction of power connection | Terminal box to the back | |
| Housing design | Standard |
| New: | Contact us for price |
| Refurbished: | Contact us for price |
| Repair: | Contact us for price |
| Exchange: | Contact us for price |
