Siemens 1FT6086-1AF71-3AH1 front image
Home / Catalog / Siemens / Motors-AC Servo / 1FT6086-1AF71-3AH1

SIEMENS 1FT6086-1AF71-3AH1

Category: Motors-AC Servo

Product Images

Siemens 1FT6086-1AF71-3AH1 front image

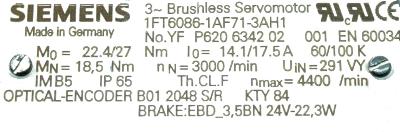

Siemens 1FT6086-1AF71-3AH1 label image
Description 1FT6086-1AF71-3AH1 is a Motors-AC Servo produced by Siemens 1FT6086-1AF71-3AH1 is a Motors-AC Servo produced by Siemens
Motor Type 1 Electric motor
Motor Type 2 Synchronous motor
Motor Type 3 AC servo motor
Series 6
Frame size 08
Length 6
Coding, core type 1
Cooling method Natural cooling
Rated speed 3000 rpm
DC link voltage 600V
Type of construction IM B5 (standard)
Connector outlet direction axial NDE
Encoder system sin/cos incremental encoder 1 Vpp (without DRIVE-CLiQ interface)
Holding brake With
Vibration severity grade and degree of protection N, IP65
New: Contact us for price
Refurbished: Contact us for price
Repair: Contact us for price
Exchange: Contact us for price
